Precision Filter (Security Filter)

Precision Filter (Security Filter)

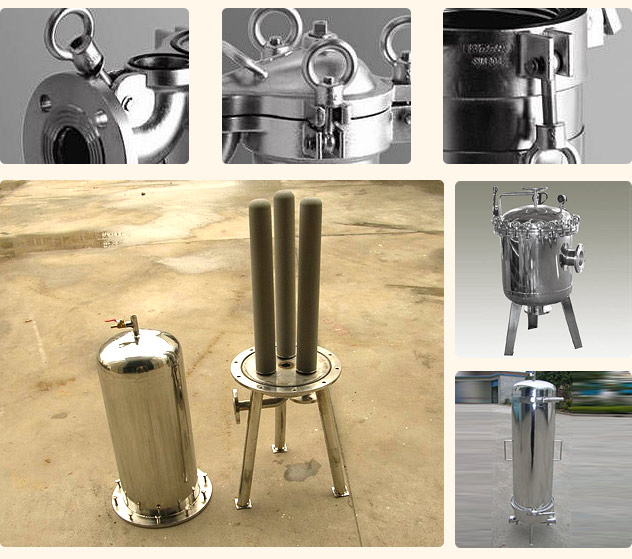

Precision filter (also known as security filter) usually has a stainless steel cylindrical shell. PP fusion spray filter element, wire-wound filter element, folding filter element, titanium filter element, activated carbon filter element, and other tubular filter elements are adoptable, according to different filter media and different process designs, to meet outlet water quality requirements. Ready-package can also be used for the convenience
Precision Filter (Security Filter) Details

Precision filter (also known as security filter) usually has a stainless steel cylindrical shell. PP fusion spray filter element, wire-wound filter element, folding filter element, titanium filter element, activated carbon filter element, and other tubular filter elements are adoptable, according to different filter media and different process designs, to meet outlet water quality requirements. Ready-package can also be used for the convenience of filter element replacement and cleaning. This product is applicable to pharmaceutical industry, chemical industry, food and beverage industry, water treatment, brewing industry, petroleum industry, printing and dyeing industry, and environmental protection industry, etc. It is an ideal filtering, clarifying and purifying device for various types of liquids.

Specification and Model

Specification (mm)

Number of Filter Element

Connection Diameter (mm)

100550

1

Dg15

200550

3

Dg20

250550

5

Dg25

300600

7-9

Dg40

350600

9-12

Dg50

4001050

16-18

Dg65

5001050

25-30

Dg65

5501050

30-40

Dg65

6001050

45-50

Dg100

8001050

60-90

Dg125


Precision and Specification of Filter Element

Precision (um)

Pressure Difference 0.1-0.2
Flow Rate m3/h
(MPa)

Effective Filtering Area
(m2)

Outer Diameter/ Inner Diameter
(mm)

Length of Filter Element
(mm)

1

0.4

0.6

65+/30

500+

5

0.75

0.6

65+/30

500+

10

1.30

0.6

65+/30

500+

20

1.85

0.6

65+/30

500+

30

2.2

0.6

65+/30

500+

50

2.5

0.6

65+/30

500+
